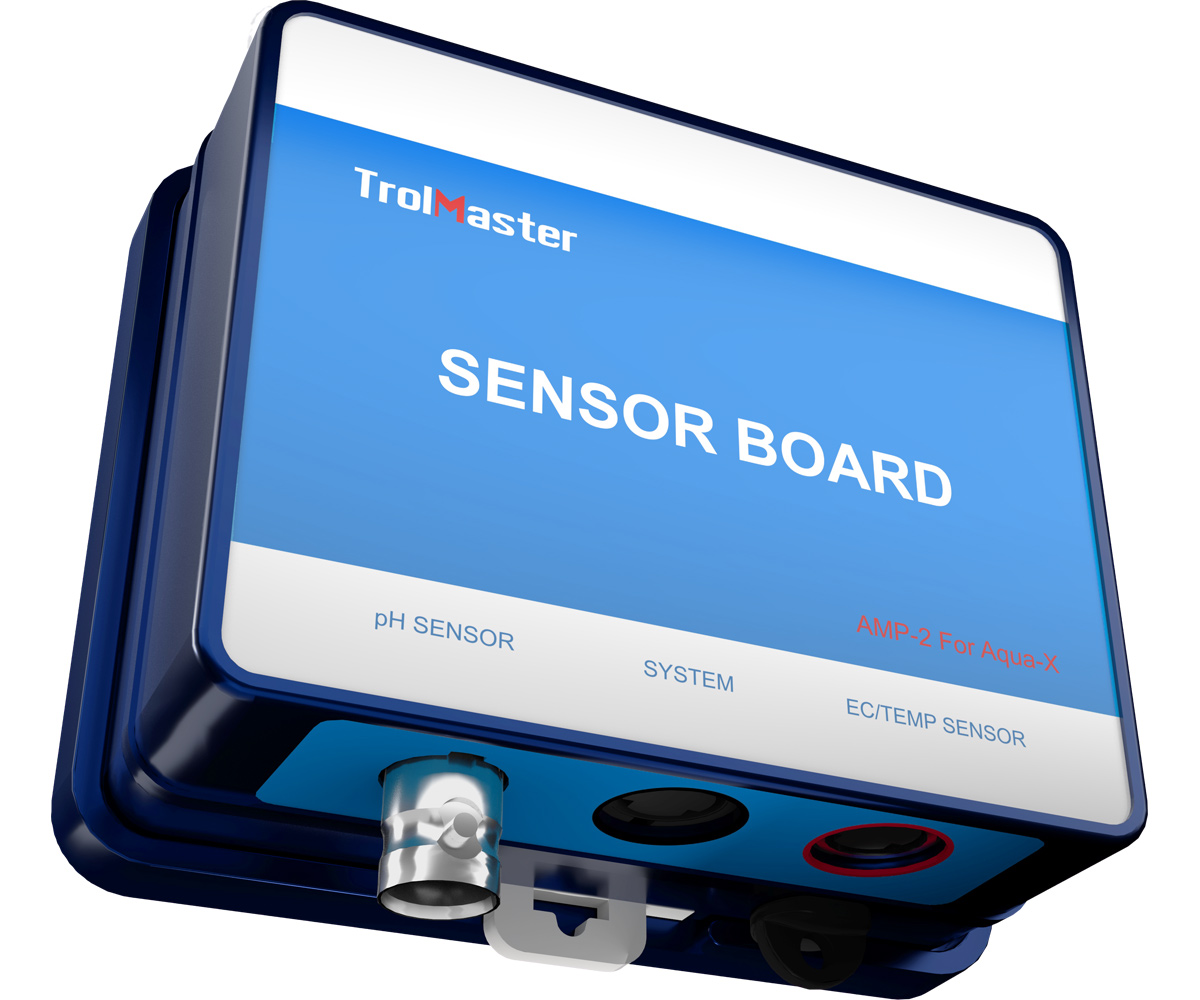

TrolMaster Sensor Board to connect sensors to controller (AMP-2)

TrolMaster (AMP-2) Sensor Board for Aqua-X

TrolMaster’s AMP-2 module connects the Aqua-X to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-X, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum “limits” can be set on the Aqua-X providing 24/7 notification of pH / EC or temperatures that are out of limits.

Features & Benefits:

• Simple-to-Use DIN Type Bracket for Easy Installation
• BNC Terminal (left) allows Direct Connection to pH Sensor
• Mini-DIN Terminal (right) allows Direct Connection to EC/Temp Sensor
• Mini-DIN Terminal (middle) allows Direct Connection to Aqua-X Controller

Package Content:

• 1 x Sensor Board
• 1 x 2.5-Meter-Long Signal Cable

Specification:

• Working Temperature: 32-122°F
• Working Humidity: ≤90%
• Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
