TrolMaster Program Device Station (DSP-1)

Description

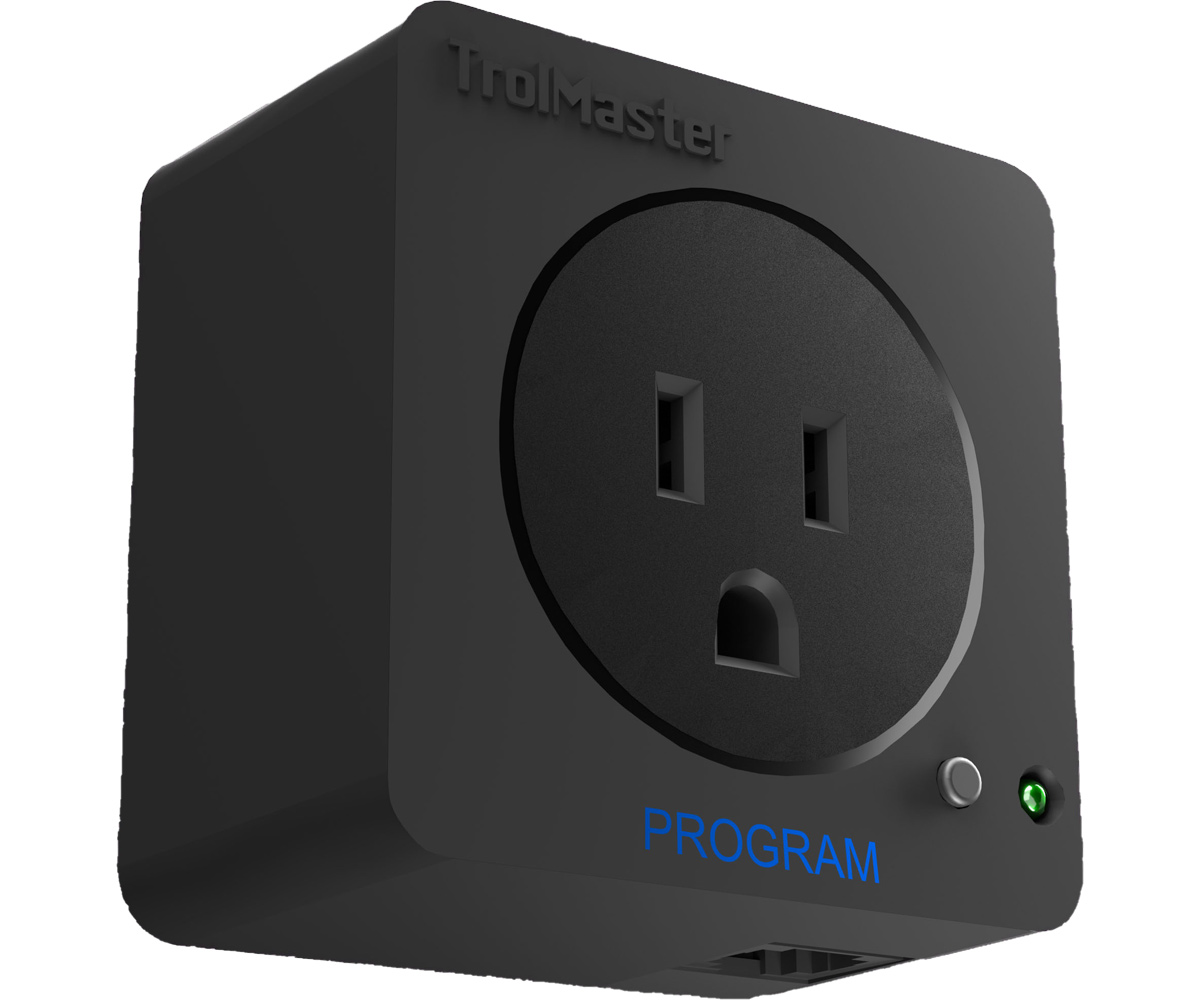

TrolMaster (DSP-1) Hydro-X Program Device Station

The TrolMaster DSP-1 program device module (timer module) works as a multi-function timer. The DSP-1 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x / Aqua-X. Any device that is 10-amps at 120 volts or less can be controlled by the DSP-1.

The DSP-1 works as a multi-function irrigation timer on the Aqua-X. The DSP-1 can be set to activate at a specific time(s) of day or night and configured to function as a recycling timer with or without a maximum number of cycles setting. The DSP-1 can also be used as a “master pump” controller on the Aqua-x. A master pump would be plugged into the DSP-1. When connected to the Aqua-x 24vac module, the DSP-1 will automatically turn on the pump when any of the 24vac irrigation zones are activated.

Features & Benefits:

• LED Indicator
• Attaching Plug
• RJ12 Cable Socket
• Address Assignment
• Plug & Play

Package Content:

• 1 x Device Station
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Specification:

• Input Voltage :100~240 VAC, 50/60Hz
• Output Current :10A
• Output Voltage :100~240 VAC, 50/60Hz
• Working Temperature :32-122°F
• Working Humidity :≤90%
• Packaging Dimensions :85mm(L) x 80mm(W) x 90mm(H)
