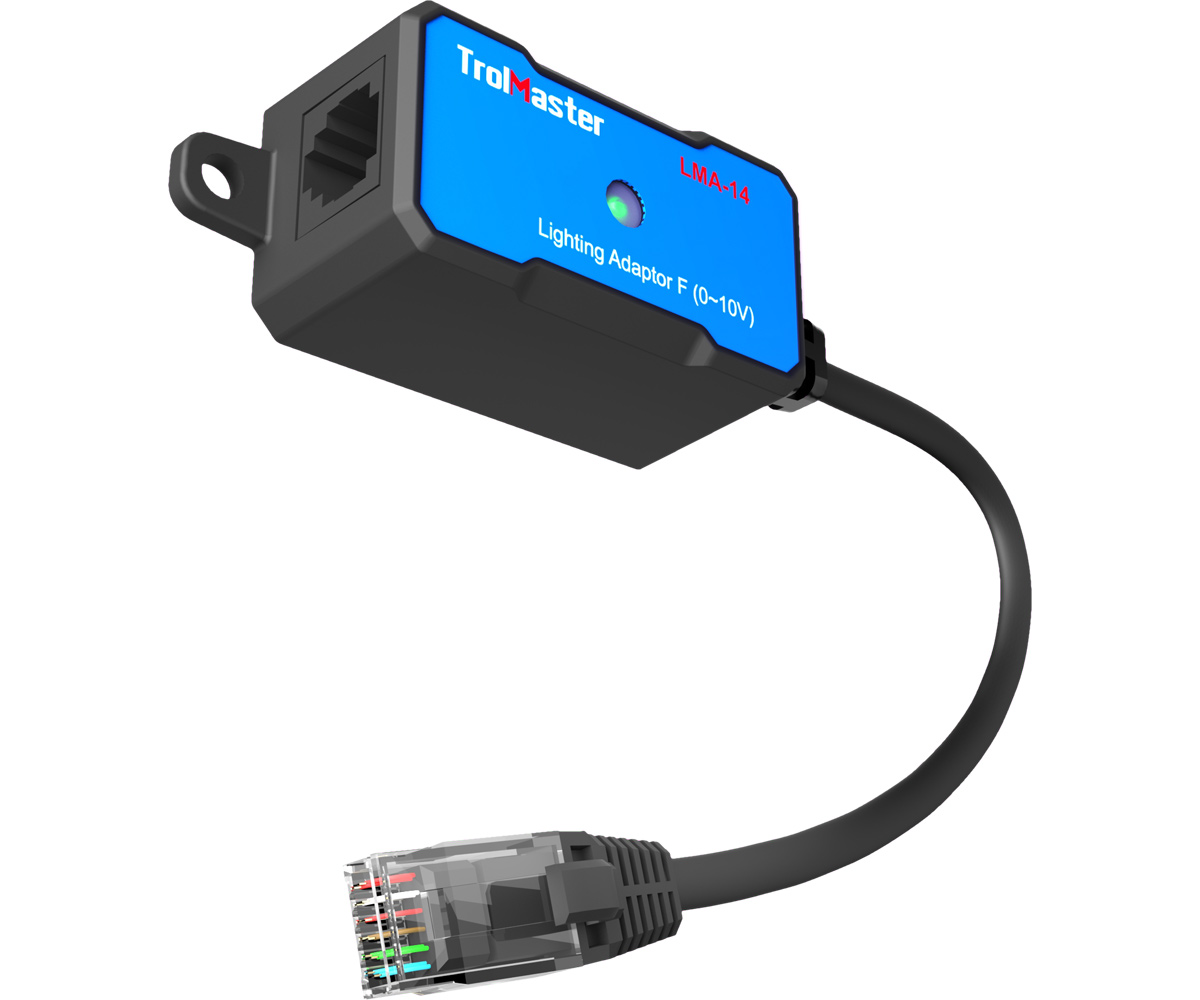

TrolMaster Lighting Control Adapter F for 0-10V protocol (LMA-14)

Description

TrolMaster (LMA-14) Lighting Control Adapter F

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

This Lighting Control Adapter D (LMA-14) is compatible with Luxx, Grower’s Choice, NanoLux, Gravita, Fluence, Bios, Scynce, 2 Wire 0-10V Dimming Meanwell Driver, and 0-10V Ballasts.

NOTE: Each LMA-14 can control up to 40 HID lights or 24 LEDs. Additional LMA-14 adapters can be used with the SPH-1 to control as many lights as required.

Features & Benefits:

• LED Indicator
• Convert Digital Signal to Analog Signal
• RJ12 Cable Socket
• Plug & Play

Package Content:

• 1 x Lighting Control Adapter F (LMA-14)
• 1 x RJ12 to Pigtail Connection Cable Set (ECS-2)

Specification:

• Output Voltage : 0~11.5V
• Maximum Current : 0.2A
• Working Temperature  :32-122°F
• Working Humidity : ≤90%
• Packaging Dimensions : 156mm(L) x 83mm(W) x 30mm(H)
