TrolMaster Dry Contact Board for Hydro-X Pro and Aqua-X Pro (OM-8)

Description

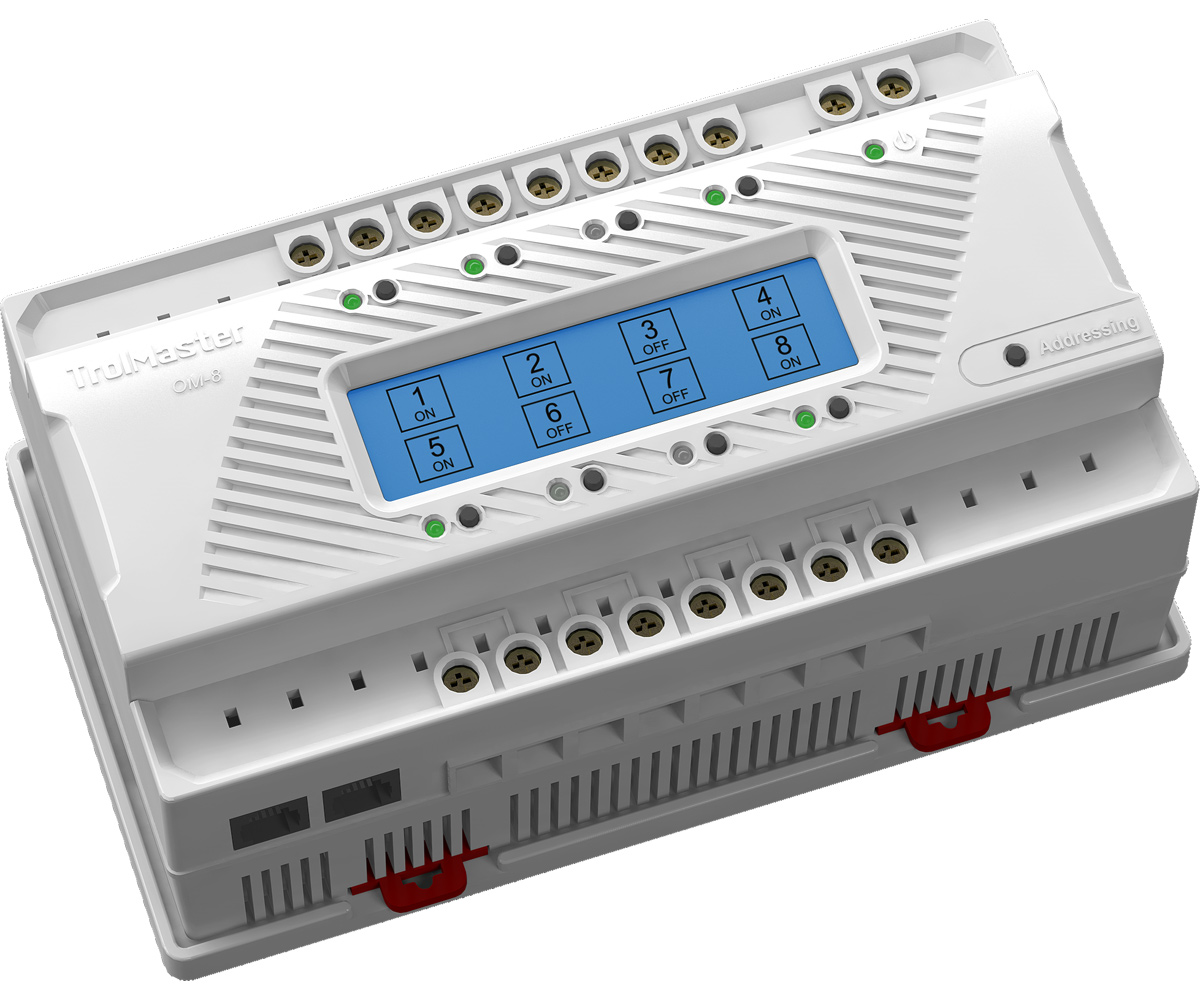

TrolMaster (OM-8) Dry Contact Board

TrolMaster’s OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts, and allows up to 12 Amp current through each contact. *The OM-8 should be mounted inside an electric control cabinet, and connected to a power supply between 100-240 VAC.

Features & Benefits:

• LCD Display, easy to set up and use
• Easy installation
• Overload protection on each of the 8 outputs @ 12 amps
• Each contact can be forced open or closed for a duration of 30 minutes

Package Content:

• 1x OM-8
• 1x 16 ft RJ12 Cable

Specification:

• Max Relay Amperage:12A Per Output
• Working Temperature:32-104°F
• Working Humidity:≤90%
• Package Dimensions:255mm(L) x 135mm(W) x 95mm(H)
