TrolMaster Device Station Kit (4RS-2)

Description

TrolMaster (4RS-2) Device Station Kit

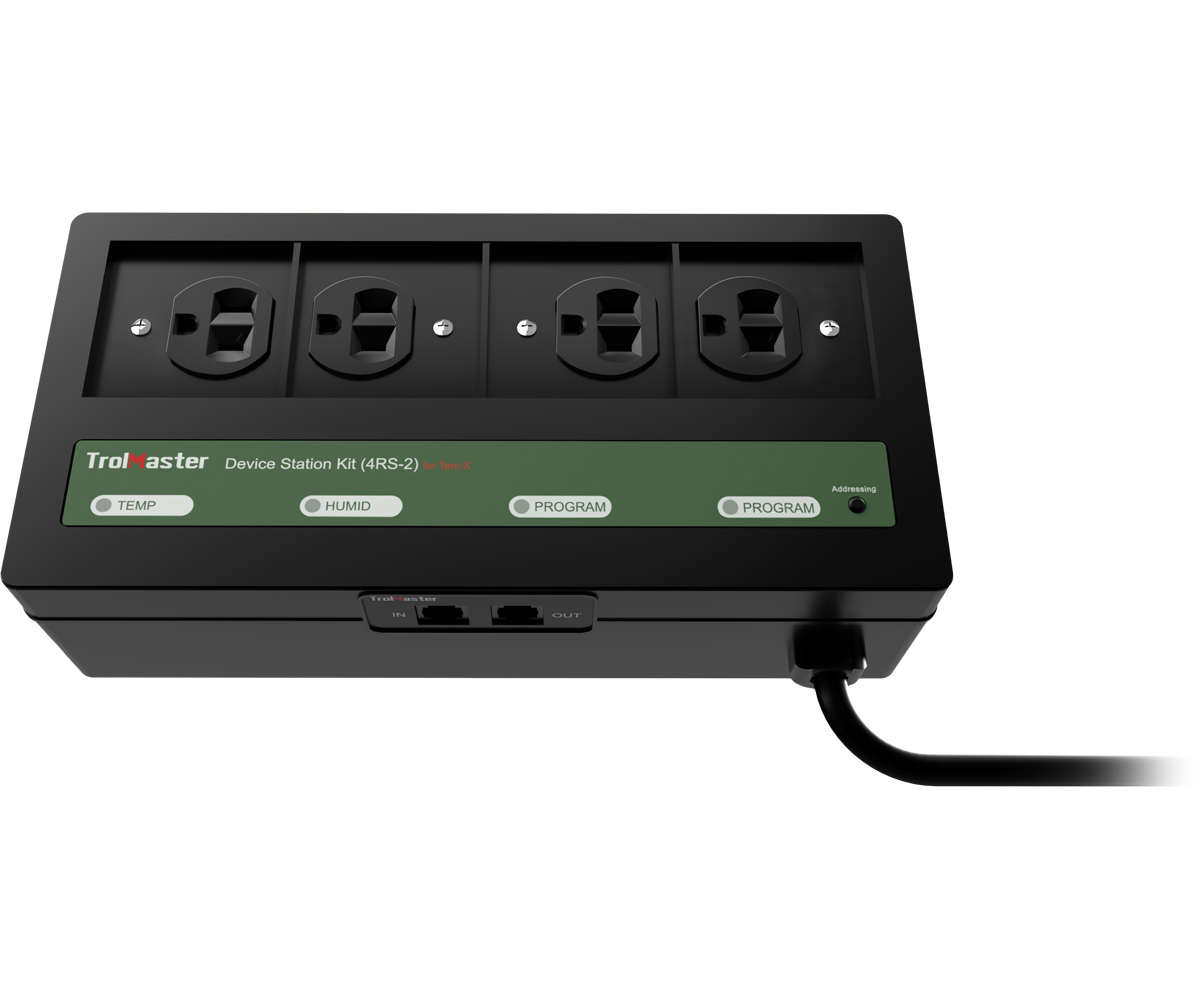

The Trolmaster’s Device Station Kit is a universal 4-outlet device module kit that can be directly connected to the Tent-X controller through RJ 12 cables. It takes up 4 device modules from the controller and comes with 4 outputs that are defaulted from left to right, including DSTx1, DSHx1, and DSPx2. The power cable is directly connected to the socket, making installation quick and easy. With a total amperage of 15A, users can power multiple devices at once, each output capable of providing up to 15A.

Features & Benefits:

• Take up 4 Device Modules from Controller
• Max 15A for each Output
• Power Multiple Modules at Once
• Quick and Easy Installation

Package Content:

• 1x Device Station Kit

Specification:

• Main Power Voltage: 100~240VAC, 50/60Hz
• Max Relay Amperage: 15A
• Working Temperature: 32-104°F
• Working  Humidity: 90% or Below
• Package Dimensions: 275mm x 255mm x 95mm
