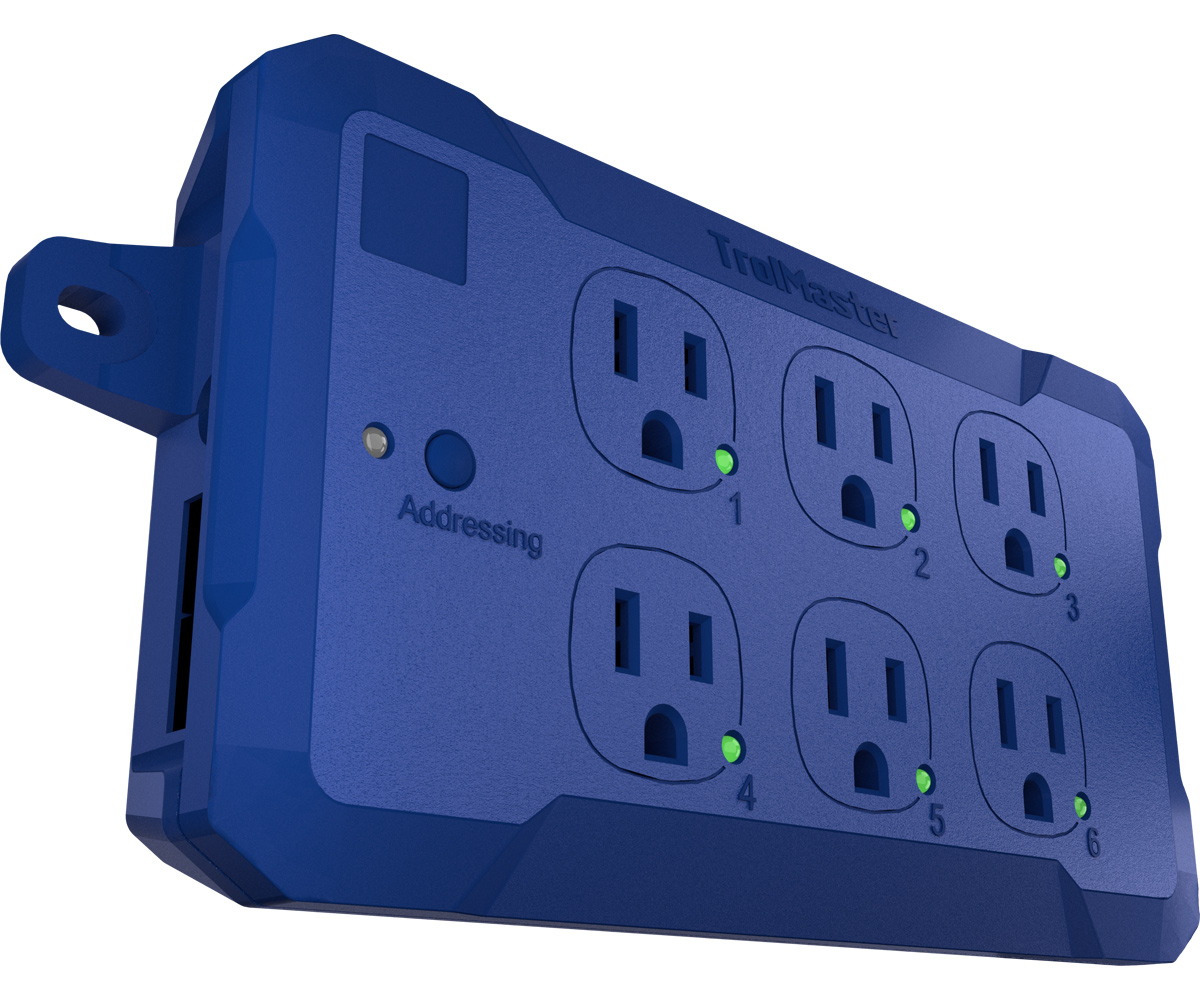

TrolMaster 110V Control Board (OA6-110)

Description

TrolMaster (OA6-110) 110V Control Board for Aqua-X System

TrolMaster’s OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off.  Up to (5) of the OA6-110 modules can be connected to a single Aqua-X.

Features & Benefits:

• LED Power Indicator
• Addressing Button
• 6 Individually-Controlled 110V Outputs
• Individual LED Indicator for Each Output
• Double RJ12 Cable Sockets for Easy Connectivity

Package Content:

• 1 x 110V Control Board
• 1 x 16ft RJ12 Cable

Specification:

• Input Voltage :120 VAC
• Max Input Current :9A
• Max Output Voltage/Current :120VAC/1.5A per Output
• Working Temperature :32°-122°F
• Working Humidity :≤90%
• Packaging Dimensions :275mm(L) x 164mm(W) x 62mm(H)
